Machine Drawing By N. D. Bhatt
₹500
Final Price inclusive of all taxes
Cash on Delivery
Free Delivery
Get it delivered in 3-6 days
size
23.5 x 17 x 2.2 Cm
Product Information
Title
Machine Drawing
Author
N. D. Bhatt
Edition
52nd Edition 2026
Publish Date
26 January 2026
ISBN 13
978-93-85039-85-0
ISBN 10
9385039857
Pages
536
Weight (kg)
0.650
Language
English
Brand
Charotar Publication
Publisher
Charotar Publishing House Pvt. Ltd.
Piece
1 Piece
Dewey Decimal Classification (DDC)
621.80222
Country
India
Product Description

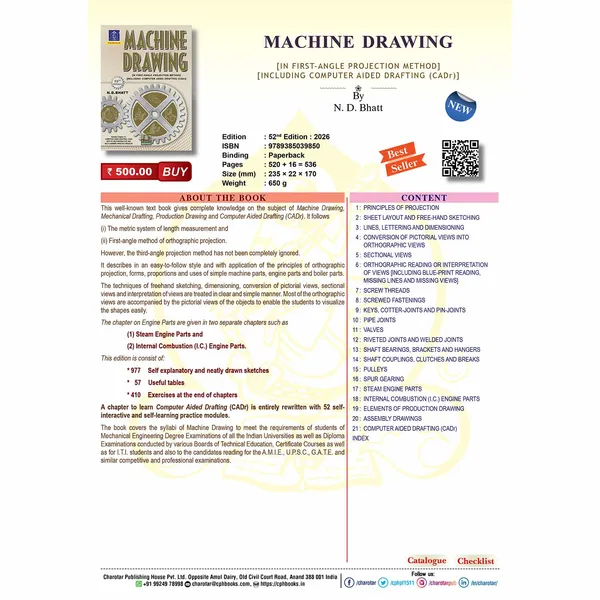

Download Brochure
- Premium Quality: Machine Drawing by N. D. Bhatt is a comprehensive engineering textbook published by Charotar Publishing House Pvt. Ltd., spanning 536 pages of structured technical content.
- Product Design: The book is methodically organised across chapters covering Principles of Projection, Sheet Layout and Free-Hand Sketching, Lines, Lettering and Dimensioning, and Conversion of Pictorial Views into Orthographic Views.
- User Experience: Readers progress through Sectional Views, Orthographic Reading and Interpretation of Views - including Blue-Print Reading, Missing Lines, and Missing Views - building a thorough understanding of technical drawing.
- Versatile Occasion: Advanced topics include Screw Threads, Screwed Fastenings, Keys, Cotter-Joints and Pin-Joints, Pipe Joints, Valves, Riveted Joints and Welded Joints, and Shaft Bearings, Brackets and Hangers, making it suitable for a wide range of machine drawing applications.
- Quality Assurance: Authored by the renowned N. D. Bhatt and published in English, this title carries a Dewey Decimal Classification of 621.80222, affirming its standing as a credible academic reference.
- Ideal For: This textbook is ideally suited for engineering students, educators, and professionals seeking a rigorous and well-structured resource in Machine Drawing.
